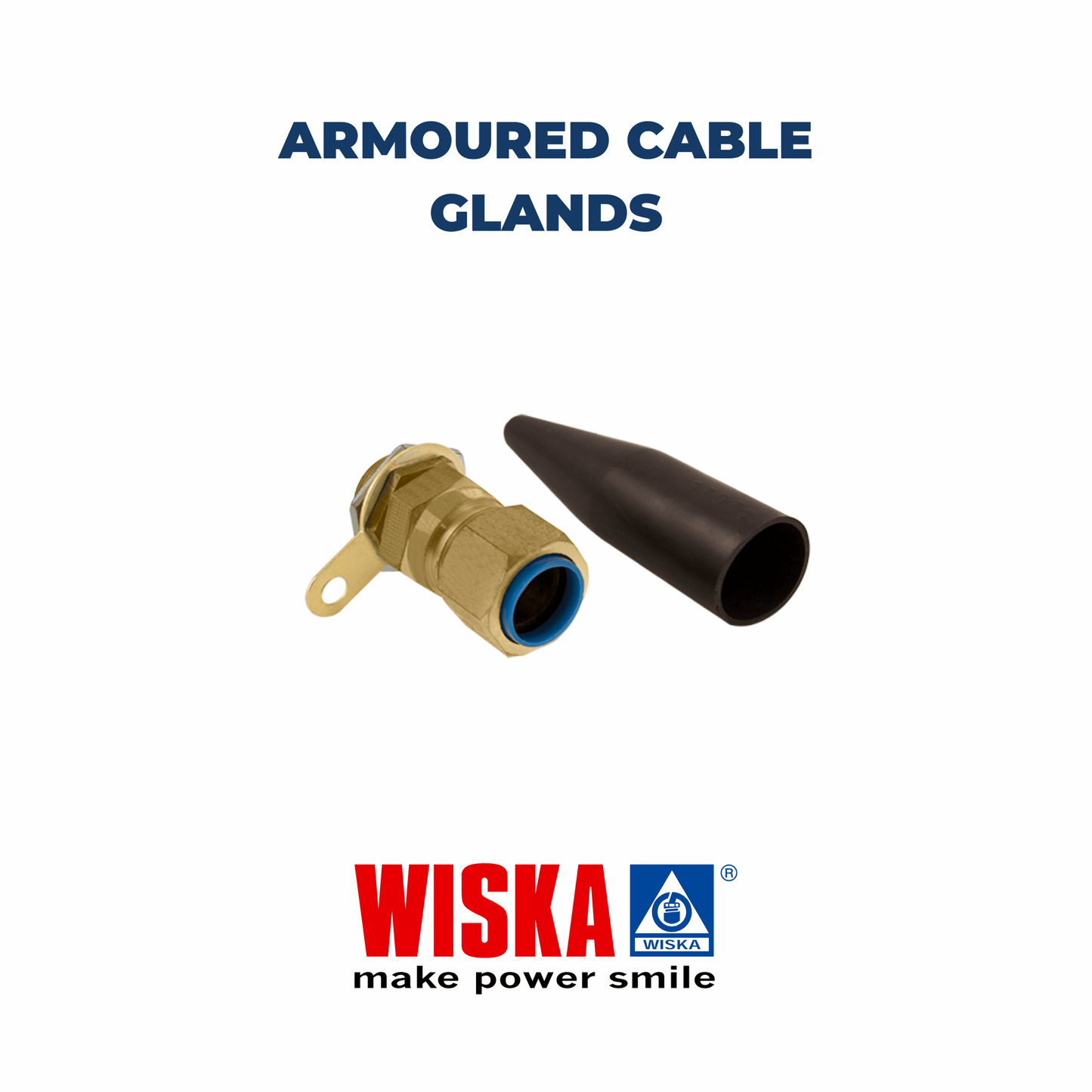

These Wiska CW Outdoor Cable Glands are designed for safe and weatherproof termination of Steel Wire Armoured (SWA) cables in outdoor and indoor installations. Manufactured by Wiska, a trusted leader in cable management, these glands provide IP68 protection, excellent strain relief, and a secure seal against dust and water ingress. Ideal for domestic, commercial, and industrial applications, they are available in the popular CW20S, CW20L, CW25, and CW32 sizes for a wide range of SWA cables.
CHARACTERISTICS
Brand: Wiska
Protection Rating: IP68 – Dust‑tight and waterproof
Application: SWA cable termination for indoor/outdoor enclosures
Compliance: BS 6121‑1 Standard
Use Case: Domestic, commercial & industrial wiring
CONSTRUCTION
Material: Brass body with durable nickel‑plated finish
Seal: High‑performance sealing rings for watertight protection
Clamping: Provides mechanical retention & earth continuity for SWA cables
Thread: Metric thread for secure fixing to compatible enclosures
CABLE COMPATIBILITY TABLE (WISKA CW GLANDS)
| Gland Size | Cable Bedding Diameter (mm) | Cable Overall Diameter (mm) | Typical SWA Cable Cores & Sizes |
|---|---|---|---|
| CW20S | 8.5 – 14.0 | 12.5 – 20.5 | 2C/3C 1.5mm² – 4mm² SWA |
| CW20L | 13.5 – 20.0 | 18.0 – 26.0 | 3C/4C 6mm² – 10mm² SWA |
| CW25 | 19.5 – 25.0 | 25.0 – 32.0 | 3C/4C 10mm² – 16mm² SWA |
| CW32 | 26.0 – 32.0 | 32.0 – 40.0 | 3C/4C/5C 16mm² – 25mm² SWA |
(Always confirm actual cable diameter before selecting a gland size.)
