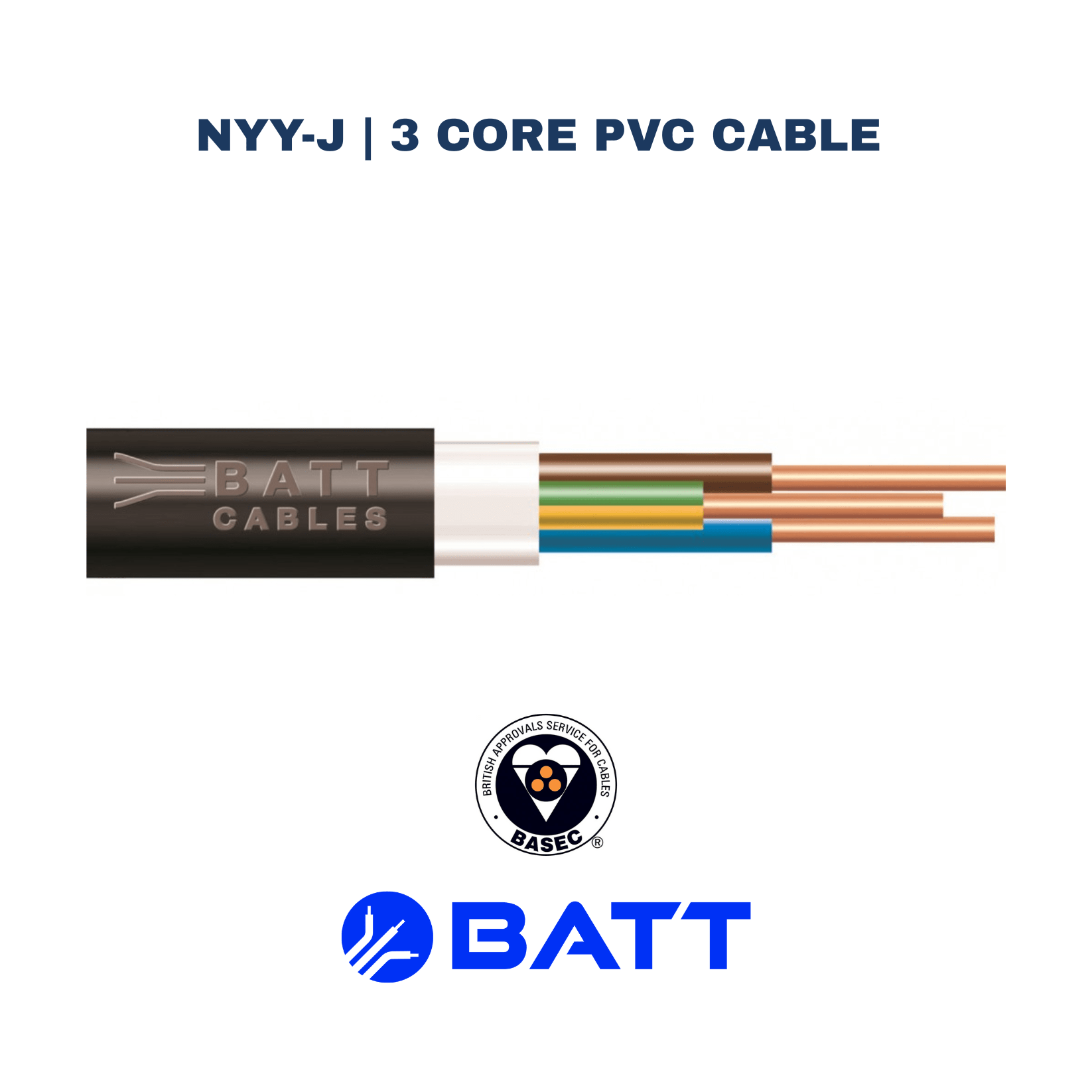

NYY-J | 3 Core PVC Cable

NYY-J | 3 Core PVC Cable

NYY cables serve as an economical power and control cable solution for fixed installations, suitable for both indoor and outdoor use. These unarmored cables are ideal for applications where mechanical protection is not required, such as ducts and areas with minimal risk of damage. Primarily used for energy supply in fixed installations, NYY cables can be installed indoors, on cable trays, within conduits, or fixed to walls, where mechanical damage is unlikely. They are versatile, applicable in various settings including open air, underground, concrete, power stations, and distribution boards

CONDUCTOR: Plain Copper

STRANDING: Class 2

INSULATION: PVC

OUTERSHEATH: PVC

OUTERSHEATH COLOUR: Black

RATED VOLTAGE: 0.6/1kV

CORE IDENTIFICATION: Single core: Black Two core: Brown and Blue Three core: Brown, Blue and Green / Yellow Four core: Black, Grey, Brown and Green / Yellow Five core: Black, Blue. Brown, Grey and Green / Yellow Seven - Forty cores: Black cores, numbered and Green / Yellow

MINIMUM BENDING RADIUS:  Fixed: 12 x overall diameter

OPERATING TEMPERATURE: Max 70ºC

STANDARDS: IEC 60502-1, VDE 0276-603, HD 603, IEC 60228 Flame retardant according to IEC/EN 60332-1-2
