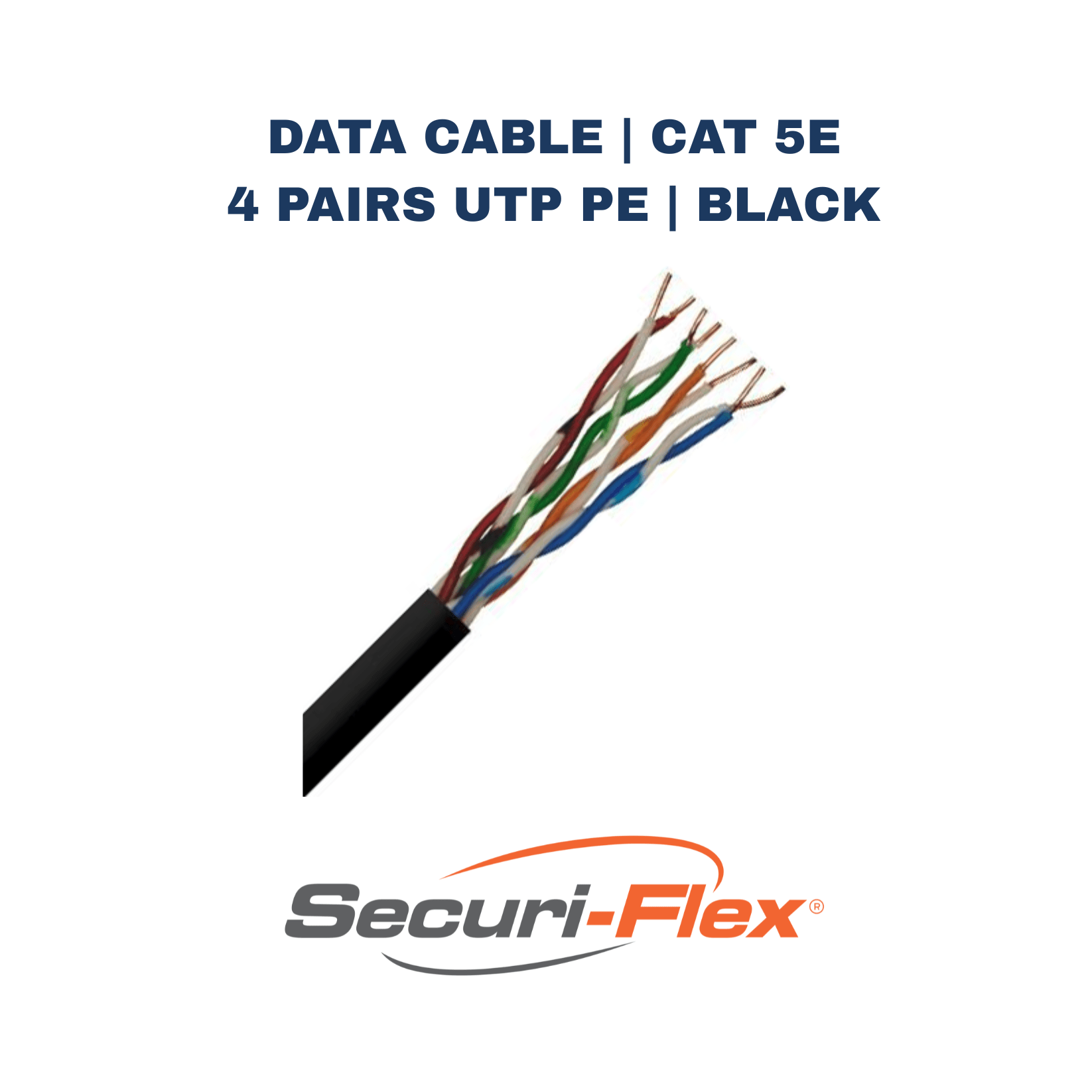

Data Cable | CAT 5e | 4 Pairs UTP PE | Black | 305 Metres | CAT5-UTP-PE-BLK

Capable of 100mbps transfer speed or 100mhz frequency at a maximum distance of 90 meters. Unscreened cables are thinner, more flexible and less expensive so are suited to building LANS and telecoms applications. Polyethylene plastic is excellent for use externally above ground or below ground inside ducting. UV resistant. Supplied in an easy pull box. Solid core is the most cost effective and commonly used type of cat5e cable • Metre marking on the cable

Drum Length: 305 metres

---------------------------

Cable Construction

CPR: Fca

Conductor: Bare Copper

Conductor Diameter (mm):  0.47 ±0.01

Overall Diameter (mm): 4.80 ±0.03

---------------------------

Jacket Specification

Jacket: PE (UV resistant)

Overall Colour: Black

Overall Diameter (mm): 4.80 ±0.03

Jacket Colour: Black RAL 9005

Jacket Thickness (mm): 0.49 ±0.03

Nylon Rip-Cord: White 210D

---------------------------

Electric Characteristics

Max Conductor DC resistance @ 20°C: <115O/km

Rated Temperature (°C):  -20°C to 80°C
