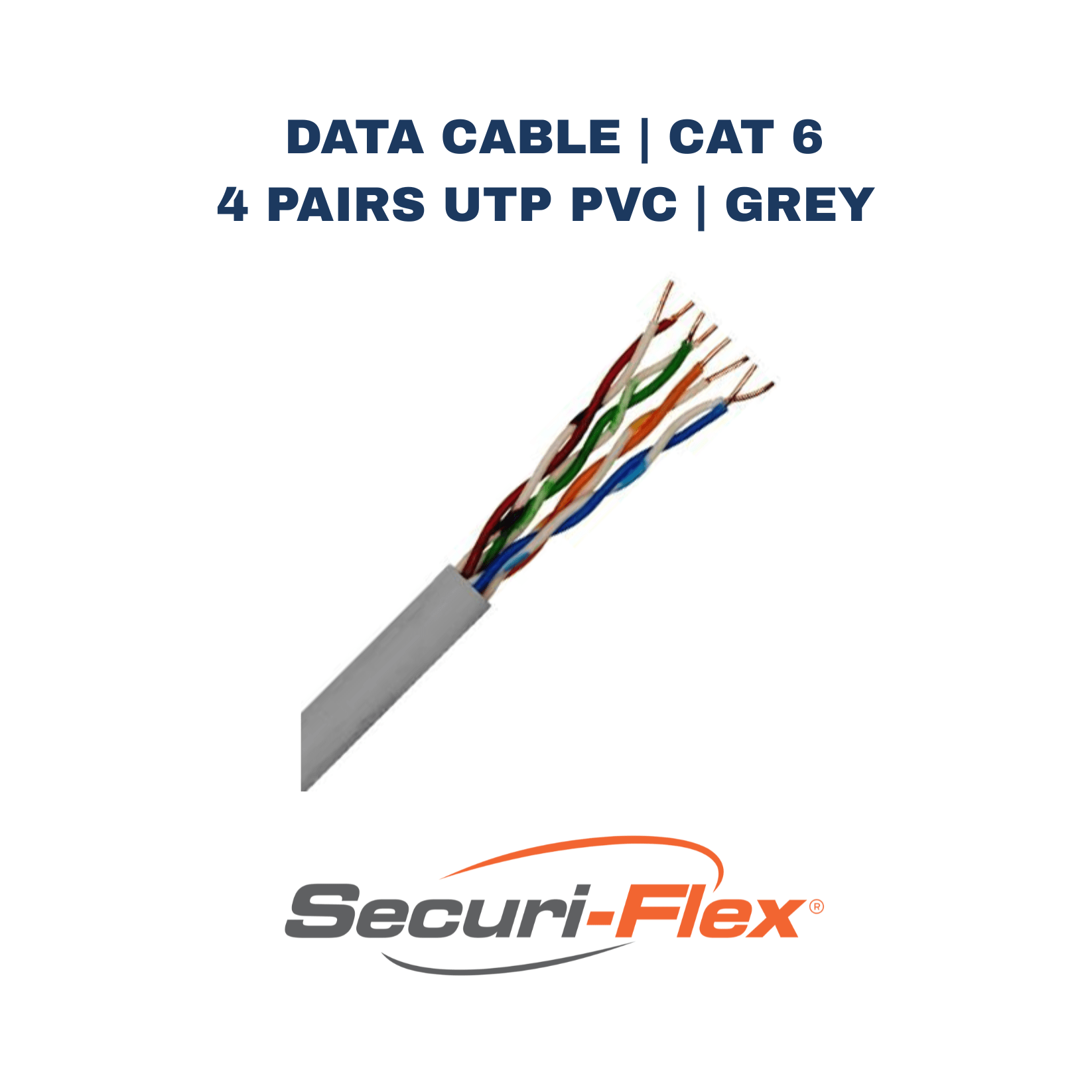

Data Cable | CAT 6 | 4 Pairs UTP PVC | Grey | 305 Metres | CAT6-UTP-PVC

Capable of 1000mbps transfer speed or 250mhz frequency at a maximum distance of 90 meters. Unscreened cables are thinner, more flexible and less expensive so are suited to building LANS and telecoms applications. Polyvinyl chloride plastic has excellent aging properties and will usually exceed a 25-30 year service life. Improved performance and protection against fire. Improved performance and protection against fire. Supplied in an easy pull box

Drum Length: 305 metres

---------------------------

Cable Construction

CPR: Eca

Conductor: Bare Copper

Conductor Diameter (mm):  0.53 ±0.01

Overall Diameter (mm): 6.10 ±0.03

---------------------------

Jacket Specification

Jacket: PVC

Overall Colour: Grey

Overall Diameter (mm): 6.10 ±0.03

Jacket Colour: Grey RAL 7004

Jacket Thickness (mm): 0.55 ±0.03

Nylon Rip-Cord: White 210D

---------------------------

Electric Characteristics

Max Conductor DC resistance @ 20°C: <950/km

Rated Temperature (°C):  -20°C to 80°C
