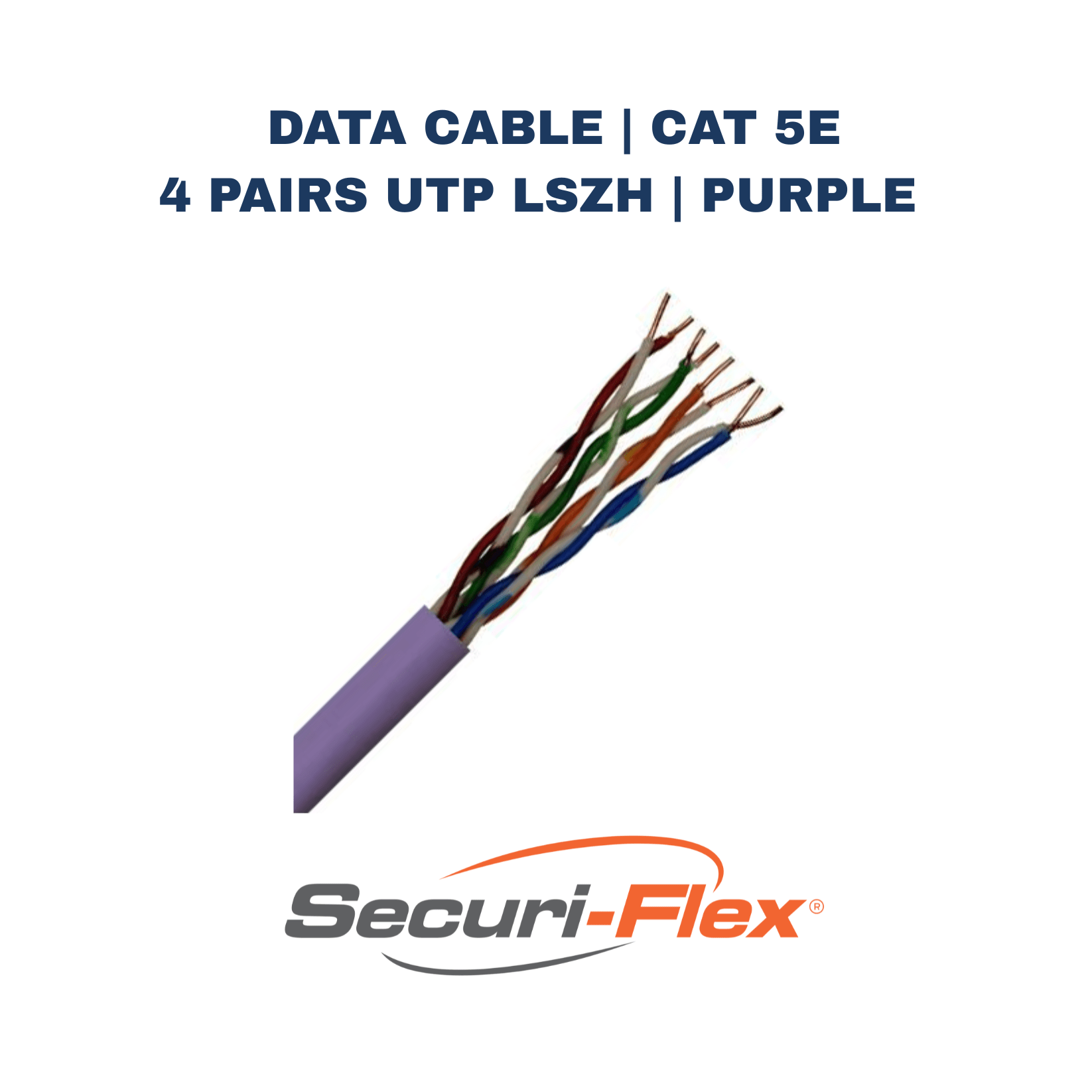

Data Cable | CAT 5e | 4 Pairs UTP LSZH | Purple | 305 Metres | CAT5-UTP-LSZH

Capable of 100mbps transfer speed or 100mhz frequency at a maximum distance of 90 meters. Unscreened cables are thinner, more flexible and less expensive so are suited to building LANS and telecoms applications. Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire. Comes in a variety of colours. Improved performance and protection against fire.  Supplied in an easy pull box. Solid core is the most cost effective and commonly used type of cat5e cable

Drum Length: 305 metres

---------------------------

Cable Construction

CPR: Eca

Conductor: Bare Copper

Conductor Diameter (mm):  0.47 ±0.01

Overall Diameter (mm): 4.80 ±0.03

---------------------------

Jacket Specification

Jacket: LSZH

Overall Colour: Purple

Overall Diameter (mm): 4.80 ±0.03

Jacket Colour: Purple RAL 4005

Jacket Thickness (mm): 0.49 ±0.03

Nylon Rip-Cord: White 210D

---------------------------

Electric Characteristics

Max Conductor DC resistance @ 20°C: <115O/km

Rated Temperature (°C):  -40°C to 70°C
