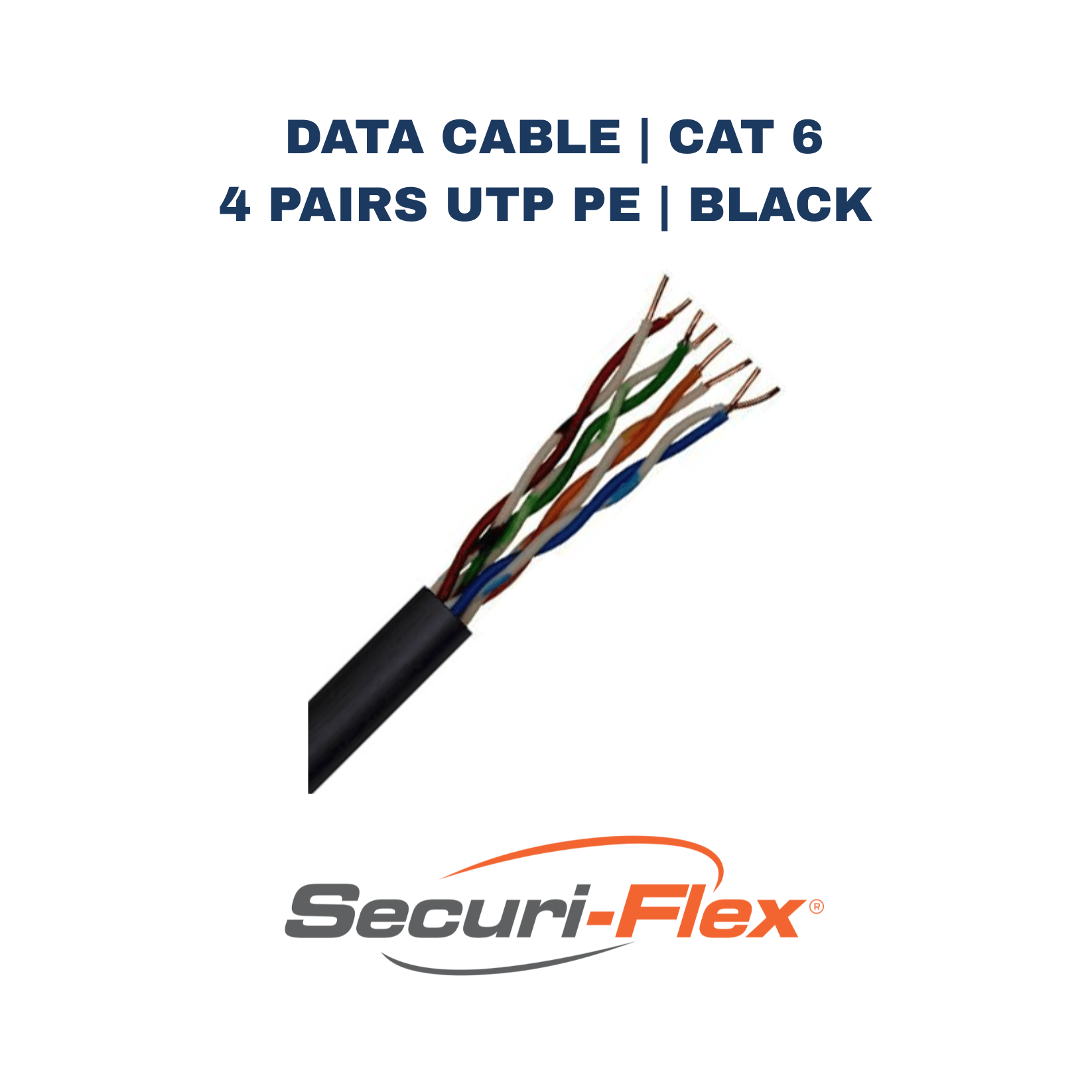

Data Cable | CAT 6 | 4 Pairs UTP PE | Black | 305 Metres | CAT6-UTP-PE-BLK

Capable of 1000mbps transfer speed or 250mhz frequency at a maximum distance of 90 meters. Unscreened cables are thinner, more flexible and less expensive so are suited to building LANS and telecoms applications. Polyethylene plastic is excellent for use externally above ground or below ground inside ducting. UV resistant. Supplied in an easy pull box.

Drum Length: 305 metres

---------------------------

Cable Construction

CPR: Fca

Conductor: Bare Copper

Conductor Diameter (mm):  0.53 ±0.01

Overall Diameter (mm): 6.10 ±0.03

---------------------------

Jacket Specification

Jacket: PE UV resistant

Overall Colour: Black

Overall Diameter (mm): 6.10 ±0.03

Jacket Colour: Grey RAL 7004

Jacket Thickness (mm): 0.55 ±0.03

Nylon Rip-Cord: White 210D

---------------------------

Electric Characteristics

Max Conductor DC resistance @ 20°C: <950/km

Rated Temperature (°C):  -20°C to 80°C
